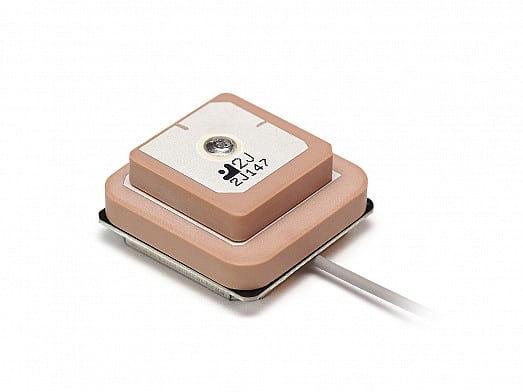

2JM3201C2F Antenna
| Technologies | GPS/Glonass/Beidou/QZSS/Galileo/SBAS/RTK/L1L2 |
|---|---|
| Bandwidth (MHz) | 1227, 1561-1606 |
| Bands | L2, L1 |
| Frequency | 1227.6, 1561.098, 1575.42, 1602.00 |
| Standards | GPS(L2C), QZSS(L2C), GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1) |
| Return Loss (dB) | ~-15.0, ~-10.4 |
| VSWR | ~1.6:1, ~1.8:1 |
| Passive Peak Gain (dBi) | ~1.7, ~3.6 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3dB max |
| Polarisation | RHCP |
| Voltage (V) | 1.5 – 6 |
| Active Gain (dB) | 28 @ 3 V |
| Noise Figure (dB) | 1.6 @ 3V |
| Current Consumption (mA) | 16 @ 3V |
| Power Consumption (mW) | 48 @ 3V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | ~40 |
| ESD Protection (kV) | 2 |
