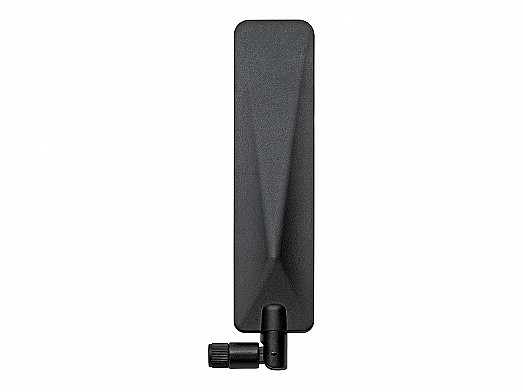

2JW0183z-C276B 5G NR Antenna
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency (MHz) | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-12.4, ~-11.4, ~-12.6, ~-10.6 |
| VSWR | ~1.8:1, ~1.9:1, ~1.9:1, ~2.1:1 |
| Efficiency (%) | ~80.1, ~75.0, ~70.2, ~68.5 |
| Peak Gain (dBi) | ~3.6, ~3.2, ~3.5, ~3.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
