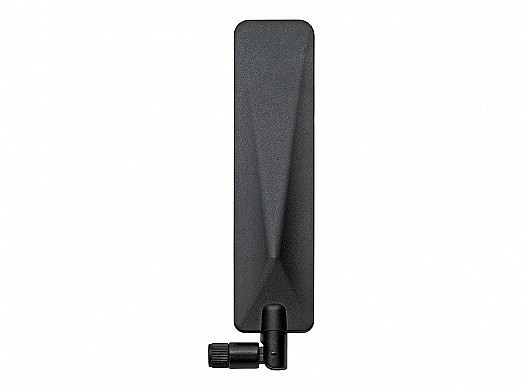

2JW0180z-C868B 5G NR Antenna
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF |
| Frequency | 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-4.8, ~-14.3, ~-8.2, ~-6.8, ~-10.6 |
| VSWR | ~3.8:1, ~1.7:1, ~2.5:1, ~4.1:1, ~2.1:1 |
| Efficiency (%) | ~20.6, ~40.8, ~60.0, ~40.8, ~30.9 |
| Peak Gain (dBi) | ~-4.5, ~0.5, ~2.1, ~1.5, ~2.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
