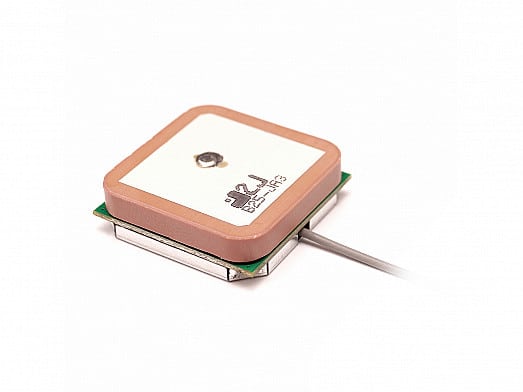

2JM001F Antenna
| Standards | GPS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42 |
| Passive Gain (dBi) | ~3.6 |
| Impedance (Ohm) | 50 |
| Voltage Range (V) | 3.0 – 5.0 |
| Active Gain (dB) | 25 @ 5.0 V |
| Noise Figure (dB) | 2.5 @ 5.0 V |
| Current Consumption (mA) | 20 @ 5.0 V |
| Power Consumption (mW) | 100 @ 5.0 V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | 43 |
| ESD Protection (kV) | 2 |
