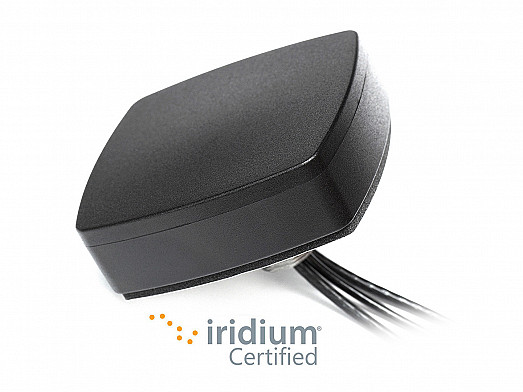

2J6975BGF Iridium Certified Antenna
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-8.9, ~-9.2, ~-8.2, ~-7.5 |
| VSWR | ~2.6:1, ~2.4:1, ~2.7:1, ~2.5:1 |
| Efficiency (%) | ~55.0, ~51.2, ~25.7, ~28.3 |
| Peak Gain (dBi) | ~2.3, ~5.1, ~2.6, ~2.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
| Radiation Pattern | Omni-Directional |
