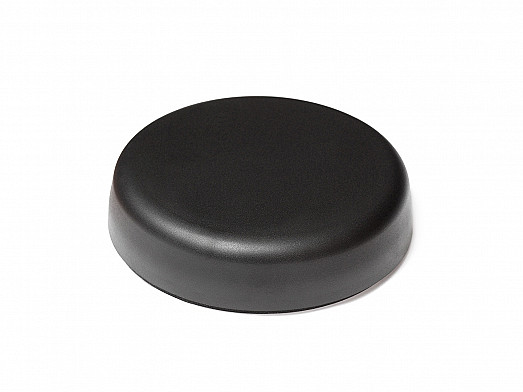

2J6586BGFa-M18-SP 5G NR Antenna
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-6.5, ~-11.2, ~-14.5, ~-15.7 |
| VSWR | ~3.0:1, ~1.9:1, ~1.5:1, ~1.5:1 |
| Efficiency (%) | ~20.0, ~18.7, ~15.5, ~10.9 |
| Peak Gain (dBi) | ~-3.6, ~-2.1, ~-1.7, ~-5.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
