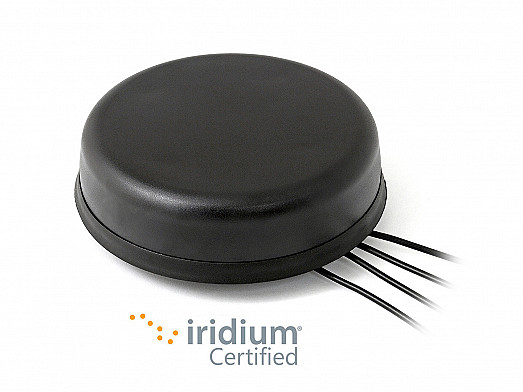

2J6551BGF Iridium Certified Antenna
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-7.4, ~-9.7, ~-11.2, ~-14.2 |
| VSWR | ~3.3:1, ~2.3:1, ~2.1:1, ~1.7:1 |
| Efficiency (%) | ~19.7, ~17.5, ~13.3, ~15.9 |
| Peak Gain (dBi) | ~-1.7, ~-1.7, ~-1.3, ~0.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
| Radiation Pattern | Omni-Directional |
