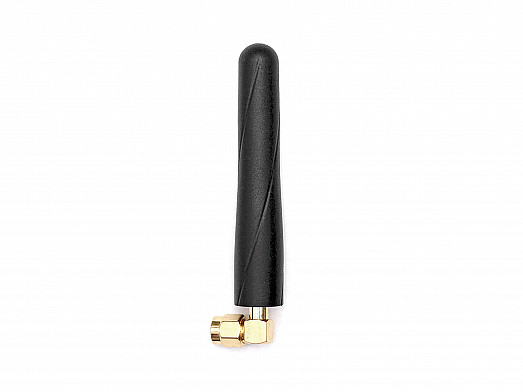

2J0801CF-C40G-A38G Antenna
| Standards | GPS/GLONASS/BeiDou/QZSS/Galileo |
|---|---|
| Frequency | 1561.098, 1575.42, 1598-1606 |
| Passive Gain (dBi) | ~3.5, ~3.4, ~3.2 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Active Gain (dB) | 28 @ 2.7 V |
| Voltage Range (V) | 1.5 – 3.6 |
| Current Consumption (mA) | 9 @ 2.7 V |
| Power Consumption (mW) | 24.3 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | ~43 |
| ESD Protection (kV) | 6 |
