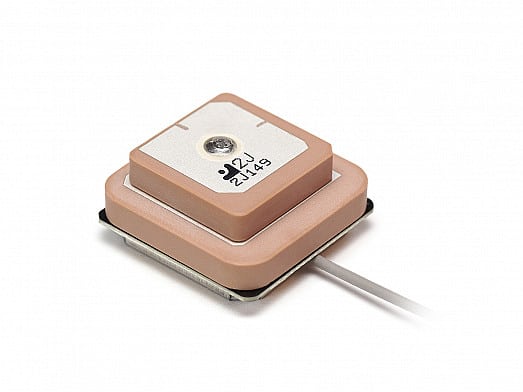

2JM3201C5F Antenna
| Technologies | GPS/Glonass/Beidou/QZSS/Galileo/IRNSS/SBAS/L1L2L5 |
|---|---|
| Bandwidth (MHz) | 1176, 1227, 1561-1606 |
| Bands | L5, L2, L1 |
| Frequency | 1176.45, 1227.6, 1561.098, 1575.42, 1602.00 |
| Standards | GPS(L5), BeiDou(B2a , QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), QZSS(L2C) / GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1) |
| Return Loss (dB) | ~-11.3, ~-11.1, ~-16.4 |
| VSWR | ~2.1:1, ~1.8:1, ~1.4:1 |
| Passive Peak Gain (dBi) | ~4.2, ~3.2, ~1.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3dB max |
| Polarisation | RHCP |
| Voltage (V) | 1.5 – 6 |
| Active Gain (dB) | 28 @ 3 V |
| Noise Figure (dB) | 1.6 @ 3V |
| Current Consumption (mA) | 16 @ 3V |
| Power Consumption (mW) | 48 @ 3V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | ~40 |
| ESD Protection (kV) | 2 |
