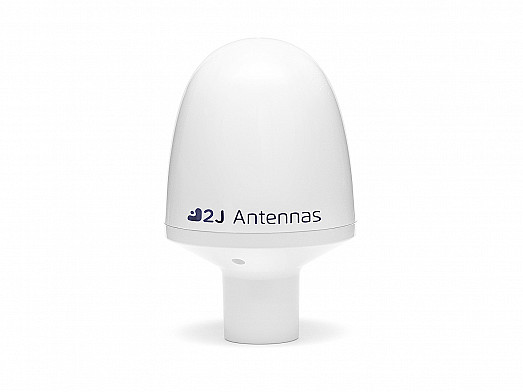

2J9C01JWCF-C392N Antenna
| Standards | GPS/GLONASS/BeiDou/QZSS/Galileo |
|---|---|
| Frequency | 1561.098, 1575.42, 1598-1606 |
| Return Loss (dB) | ~ -10.3, ~ -7.2, ~ -8.3 |
| VSWR | ~ 1.9:1, ~ 2.6:1, ~ 2.3:1 |
| Efficiency (%) | ~ 87.1, ~ 81.0, ~ 81.9 |
| Peak Gain (dBic) | ~ 4.3, ~ 4.0, ~ 3.7 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3 max |
| Polarisation | RHCP |
| Active Gain (dB) | 28 @ 2.7 V |
| Noise Figure (dB) | 1.8 @ 2.7 V |
| Voltage (V) | 1.5 – 3.6 |
| Current (mA) | 9 @ 2.7 V |
| Power Consumption (mW) | 24.3 Typ @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | ~ 43 |
| ESD Protection (kV) | 6 |
