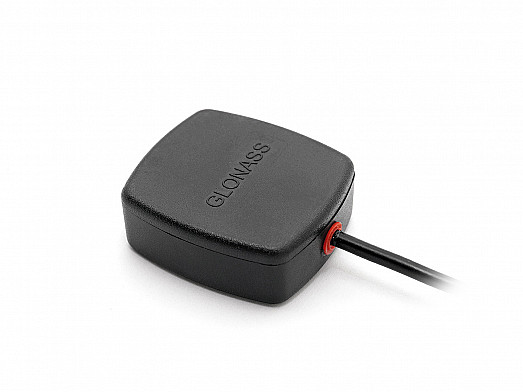

2J4301MPGFx Antenna
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| VSWR | <1.2:1 |
| Efficiency (%) | ~65, ~68 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3V, 24 @ 5V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 – 5.5 |
| Current (mA) | 15 – 25 |
| Power Consumption (mW) | 138 Max |
